Products
Minerals

We provide various kinds of minerals which are procured from reliable manufacturers. These products are then subjected to different processes for purification processes. These are offered at reasonable rates and are used in different applications in various industries in steel, textile, chemical and many more. We always cater to the varied and dynamic requirements of customers.

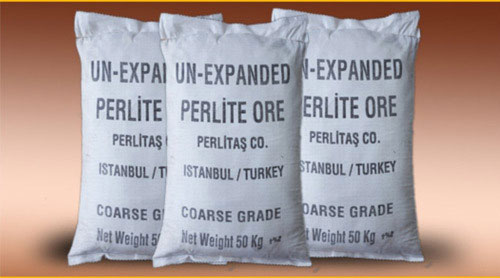

Unexpended Perlite ore CG 251

The inclusion of slag in the catering is one of the major cause of rejection in Cast Iron & Steel Castings.This slag floating on the metal surface of the ladle enterts the mould alog with the metal.Moreover there is a Slag build-up on the walls on ladles and induction furnaces.

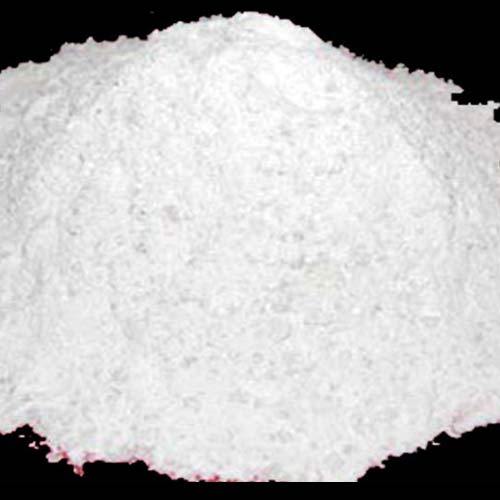

Acidic Ramming Mass

Acidic Ramming Mass is used in the lining of induction furnaces. Quality of Acidic ramming mass is directly related to the heating performance of the furnaces. Better quality of lining results in the smooth working of furnaces, optimum output and better metallurgical control.

4mm to 1 mm 33.00%
1 mm to 0.20 mm 33.00%
0.20 mm to 0.06 mm 17.00%
0.06 mm to below 20.00%

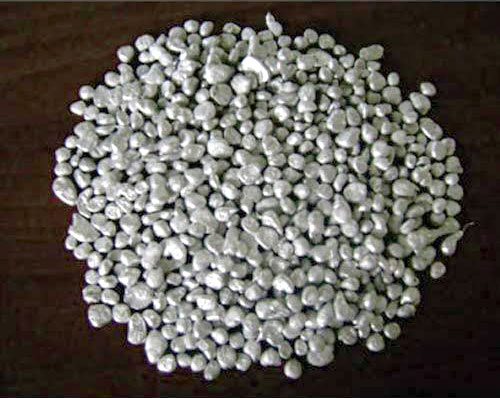

Aluminium Shots

Aluminium shots are basically used in Degassing process in Steel manufactturing industry. We supply good quality Aluminium shots which is light weight so that it does not settle into the bottom. Aluminium shots are of small standard size for effective usage in steel making process thus giving good degassing effect to the metal and improving its quality.

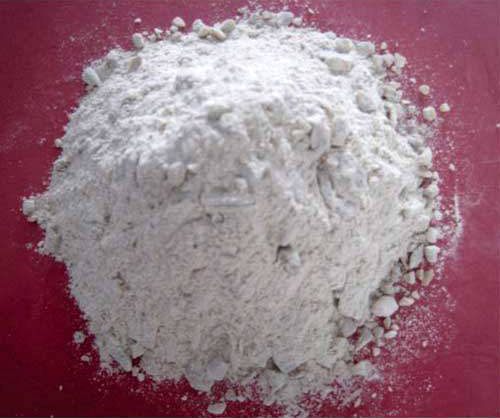

Basic Ramming Mass

Basic Ramming Mass is suitable for induction Furnaces for production of high quality alloy steel.





China Clay

Our range of China clay is high on demand in the market and is widely appreciated by the client as it is free from impurities. Besides, customers can avail the China clay offered by us at the most reasonable prices.

SiO2 46.77%
Al203 38.06%
Fe203 0.19%
TiO2 0.65%
Cao 0.19%
Mgo 0.13%
Na2O 0.11%
K2O 0.08%
L.O.l 13.79%

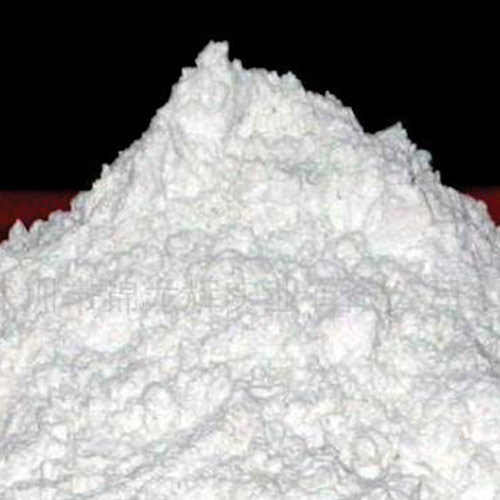

Dolomite Powder

Dolomite is Carbonate of Calcium and Magnesuim. The Dolomite powder is extensively used in Iron & Steel industries due to its strength and compatibility in process of purifying iron & steel. Natural dolomite powder is of white Clolor and is used as Filler in many applicaions such as Soap & Detergent, Paints, Ceramics and many other industries.

Caso3 40 % to 56 5
Mgco3 34 % to 43 5
Silica 1.05%
Cao 31.08 5%
Mgo 20.10%

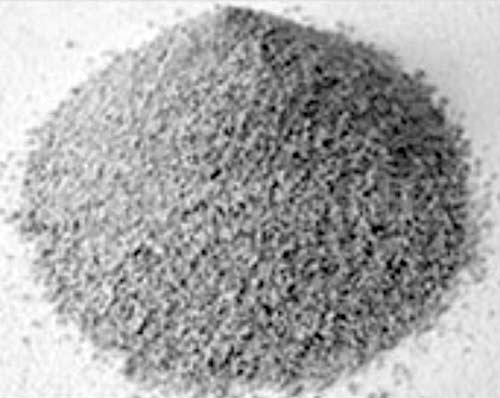

Cupola Ramming Mass

It is basically used in small capacity induction and cupola furnaces & is lesser resistant to high temperature. Recommended up to 1600 degree. The silica percentage varies from 98 to 99 %

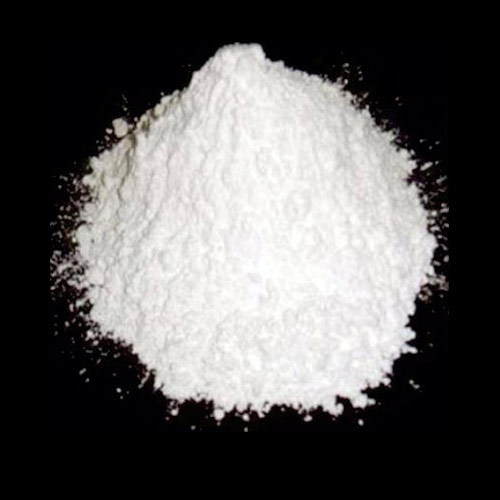

Premixed Or Daka Ramming Mass

We are specialized maufacturer of Premix Ramming Mass which contaings binder Boric acid 1.2 to 1.5 %, mixed with Ramming mass (no need to mix Boric Acid further). We recommend using our Ramming Mass (Premix), which will prove to be a good perofrmer with its long lining life reducing cost of production.

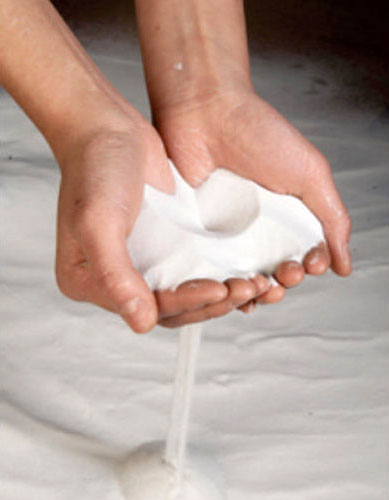

Silica Sand

Silica sand offered by our company is considered the most abundant element available on earth's surface. Silica sand is conusmed in large numer of industries in different forms. Our company various types of silica sand at pocket friendly prices. Customers can avail silica sand from us in bulk quantity.

Silica SiO2 99.19%
Alumina Al203 0.62%
Ferric Oxide Fe203 0.02%
Titanium Dioxide TiO2 0.01%
Loss on Ignition 0.16%

Limestone

Limestone is calcareous sedimentary rocks formed at the bottom of lakes and seas with the accumulation of shells, bones and other calcium rich goods. It is composed of Calcite (CaCO3). The organic matter upon which it settles in lades or seats, are preserved as fossils. Over thousands and millions of years, layer after layer is built up adding weight. The heat and pressure causes chemical reaction at the bottom and the sediments turn into solid stone, the limestone.

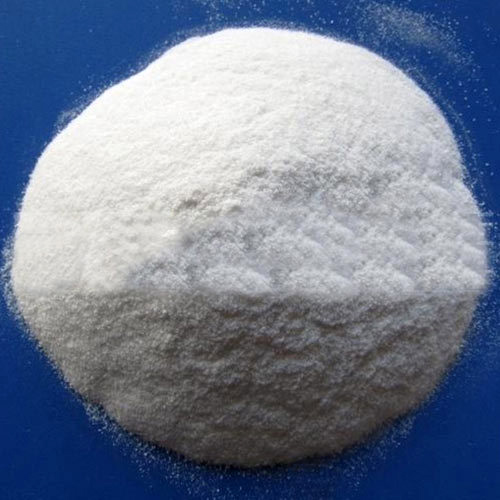

Breakdown Powder

The product breakdown agent used for sodium silicate binder system to improve the collapsilility of cores & moulds produced by carbondioxide process and self-setting process. With use of sodium silicate & carbon dioxide process, retains their strength even at higher tempreture. This retained high strength makes core & mould knockout very difficult, breakdown agent not only eases removal of sand from cores & moulds from the casting surface, but also improves surface finish of the castings & imparts very easy knockout properties.

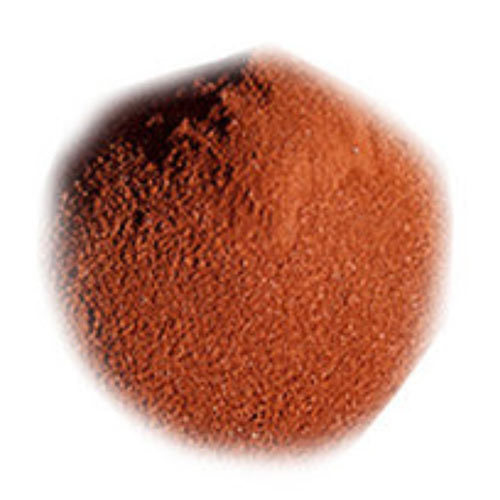

Exothermic Powder

For increasing the efficiency of the riser,inducing directional solidification in short ranges freezing alloys & avoiding shrinkage. The heavier sections of castings with uneven thicknesses are usually fed with the use of feeders or risers and its nature of solidification i.e. whether it is a short freezing alloy or a long freezing one. It is also brown coloured powder. It is a carbon free suitable for use in alloy steels such as stainless steel and very low carbon steels. It is highly exothermic and its reaction is such more vigorous which makes its ideal for small risers and feeders and in situation where a fast exothermic reation is of promary importance.

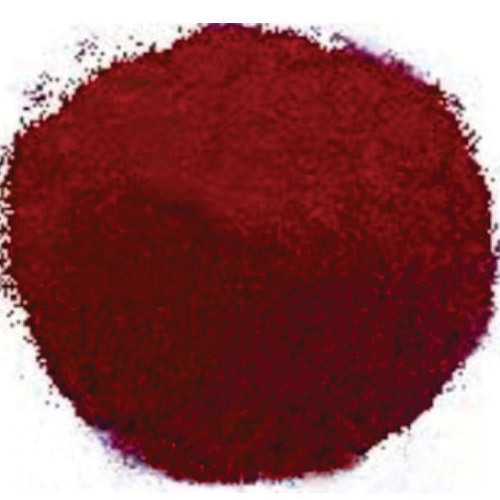

Red Iron Oxide Powder

Red Iron Oxide Super is a unique natural red hematite produce through beneficiation & fine grindig of our exclusive domestic ore body. Red Iron Oxide. Super hematite is light fast, checmically stable & color controlled within narrowly defined parameters. This product may be used in primers & paints, buliding & constructions, plastics, paper, animal feeds, as well as many other applicaions requirig a cost effective, easily dispersed natural red iron oxide.

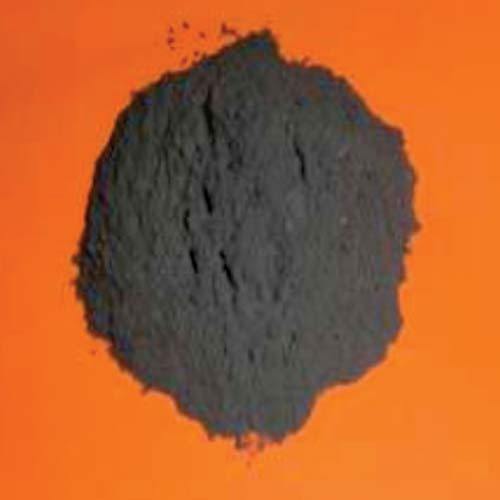

Anti Piping Compound

Application generally, sufficient material is added to provide at least a 25mm layer on the ingot head, the actual thickness increasing with ingot size. The applicaion rate per ingot tonne thus varies from as low as 0.6 kg per tonne up to 2 kg per tonne, depending on the product type, ingot dimesion and, to a lesser extent, steel quality. There is a range of APC recipes available to cate for different ingot size.

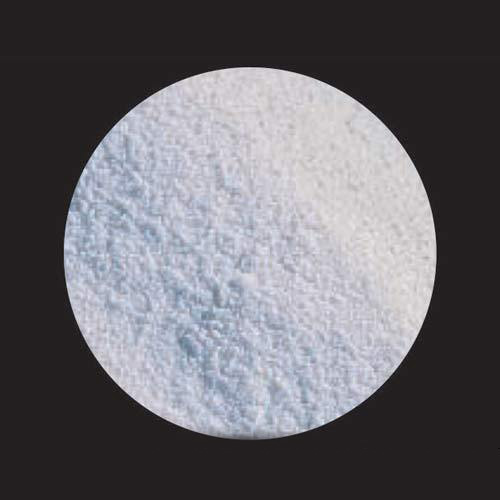

Ferrogen Powder

FERROGEN modifies the melting point and viscosity of slag material in relation to the liquid iron promoting quick and clean separation of non-metallic inclusions inherent in the melt.

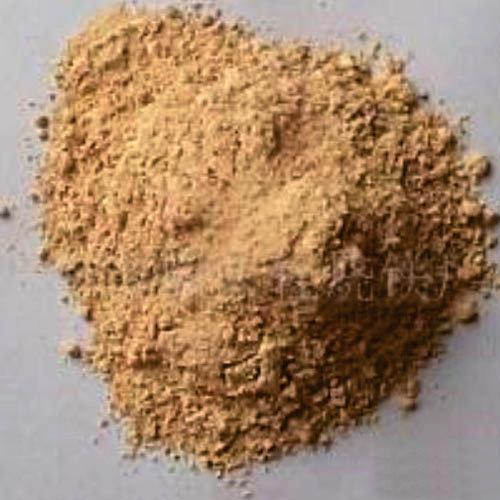

Magnasite Powder

Magnesite is a cement-like construction material, a compound of magnesuim, carbon and oxygen. The light fired magnesia powder are made from our company, usnig magnesite as raw material. The magnesite is fired in reflective furnace. Its quality is stable. It has extensively be used in refractories, chemical industry, building material, paper making.

Element %
MgO 44-48
Al 203 0, 1
Fe 203 0, 2
CaO 1, 5
SiO2 6

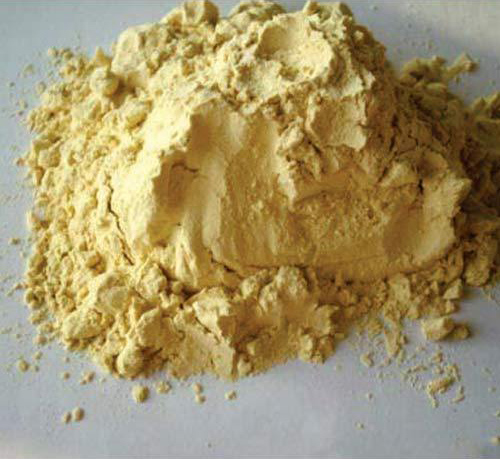

Yellow Dextrin

We present to our clients, quality assured yellow dextrin that is widely applicable in the production of adhesives, emulsions, firecrackers and other industrial supply products. Their inherent qualtiy of being easily soluble in water and their binding qualities makes them extemely popular.



Bentonite Powder

Due to its higher Swelling, higgher bond strengght, high viscosity, low filter loss with high yield value its requirement Quantitatively is less than that of other Bentonite, thus not only saving money but eliminating expensive storage with less hanling chargers.

Sr.No. Physical Properties Foundry Grade Alka Bond Superior Grade
1 Moisture (@105 degree-110 degree C 13 % Max. 13 % Max. 13 % Max.
2 Seive anlysis (Wet)- 202 Mesh 98 % Min. 98 % Min. 98 % Min.
3 PH (6 % Suspension) 8.8- 9.5 9.2- 9.8
4 Swelling capacity (2gms/ 100cc) 25 Min. 28 Min.
5 Gelling time (10 % ) Instantaneous Instantaneous Instantaneous
6 MB Value (MG/GM of Bentonite) 370 Min. 400 Min. 420 Min.
7 Gel formation inex 55 Min. 70 Min. 80 Min.
8 Thermal stability     50 % Min.

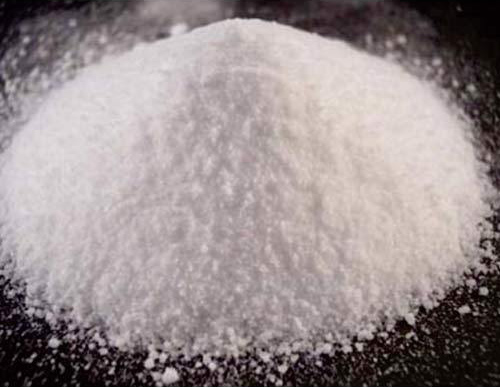

Boric Acid Powder

Used in Nuclear Power plants to slow the rate of fission. Also used in the production of glass for flat panel displays, Boric Acid is also used in electroplating. Used in the manufacture of ramming mass a fine silica powder used for the production of induction furnace linings and ceramics.

Test Unit Result
B2O3 %, min 56.25
Purity %, min 99.9
So4 ppm, max 500
Cl ppm, max 15
Fe ppm, max 20

Soapstone Powder

We offer supreme quality talc powder in the form of soapstone powder that includes paper grade talc, cosmetic grade talc, plastic grade talc, paint grade talc etc. The talcum powder offererd is suitable for cosmetics industry, pharmaceutical industry and paper industry. These are available in various mesh and brightness.

Characterstics Requirements Observations
Magnesium (as mgo)% by weight min. 20 14.25%
Acid Soluble Matter %by mass max. 6 4.91
Brightness 88.00% test passes
Mesh 300 test passes
